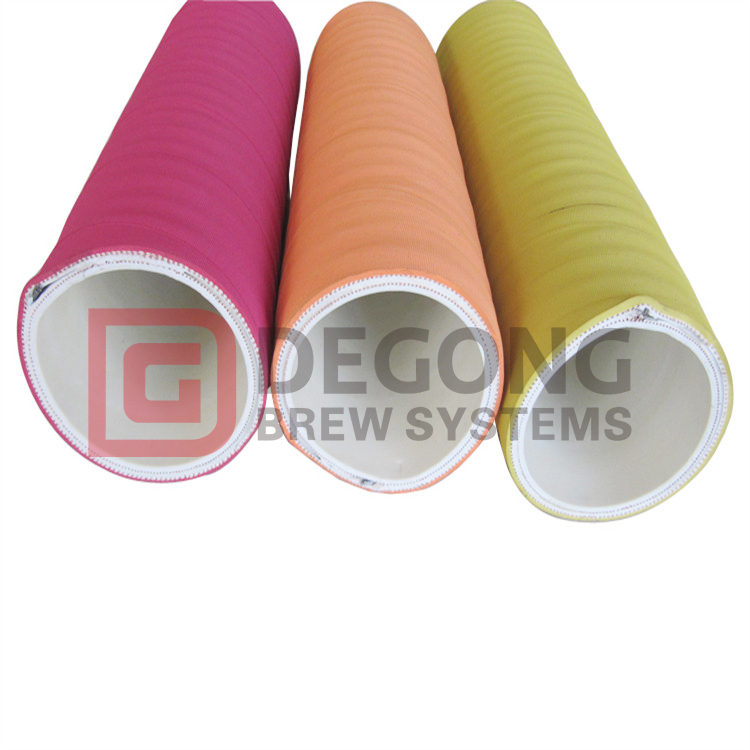

4″ UHMW Chemical Hoses
DEGONG
| Flexible Chemical Rubber Hose is commonly handing strong and oxidizing acids,esters,ketons,alcohols ,solvents and chemicals whether by pressure or combination of pressure and vacuum, or gravity flow using in conveying and transferring a variety of products in plants, trucks, barges, ships, or storage tanks. Acid resistant EPDM tube, not oil resistant. Cover is heat, ozone, weather, and acid resistant. This chemical rubber hose is rated at full vacuum and features a reinforcement of a spiral steel helix between synthetic textile plies, providing a working pressure of 100 to 150 psi. |
| I.D | O.D | W.P | B.P | Bend Radius | Weight | Length | ||
| mm | inch | mm | Psi | bar | bar | mm | kg/m | m |
| 19 | 3/4 | 29 | 150 | 10 | 30 | 228 | 0.6 | 100 |
| 25 | 1 | 35 | 300 | 0.93 | ||||
| 32 | 1-1/4 | 42 | 320 | 1.25 | 60 | |||
| 38 | 1-1/2 | 48 | 380 | 1.47 | ||||
| 51 | 2 | 64 | 400 | 1.92 | ||||
| 64 | 2-1/2 | 78 | 512 | 2.4 | ||||
| 76 | 3 | 90 | 532 | 2.9 | ||||
| 102 | 4 | 117 | 630 | 3.92 | 30 | |||
| 127 | 5 | 143 | 760 | 6.5 | ||||
| 152 | 6 | 168 | 912 | 7.7 | ||||
Common application: The mandrel has a built-in chemical suction and delivery hose. UHMW polyethylene pipe has excellent resistance to most chemicals.
Tube: Colorful EPDM rubber with a layer of ultra-high molecular weight chemical resistant lining.
Reinforcement: piles of high-strength polyester rope combined with double wira spirals.
Cover: Colorful EPDM rubber, wrapping surface, chemical resistant rubber.
Temperature range: -20°C to +125°C.
Safety factor: 4:1
Key features: flexible, excellent weather, oil, ozone and abrasion resistance
Working Process: With the strict quality control in the rubber hose production, inspercted strickly
before delivery, we can supply the high quality rubber hoses
Packaging & Shipping: Packing of industrial rubber hoses: Weaving bag in roll or as your requirment
Appilication: Flexible chemical rubber hose are handing strong and oxidizing acids, esters,ketons,alcohols ,solvents and chemicals whether by pressure or combination of pressure and vacuum, or gravity flow using in conveying and transferring a variety of products in plants, trucks, barges, ships, or storage tanks.
| If you have any questions about the rubber hoses, please feel free to contact us. |
