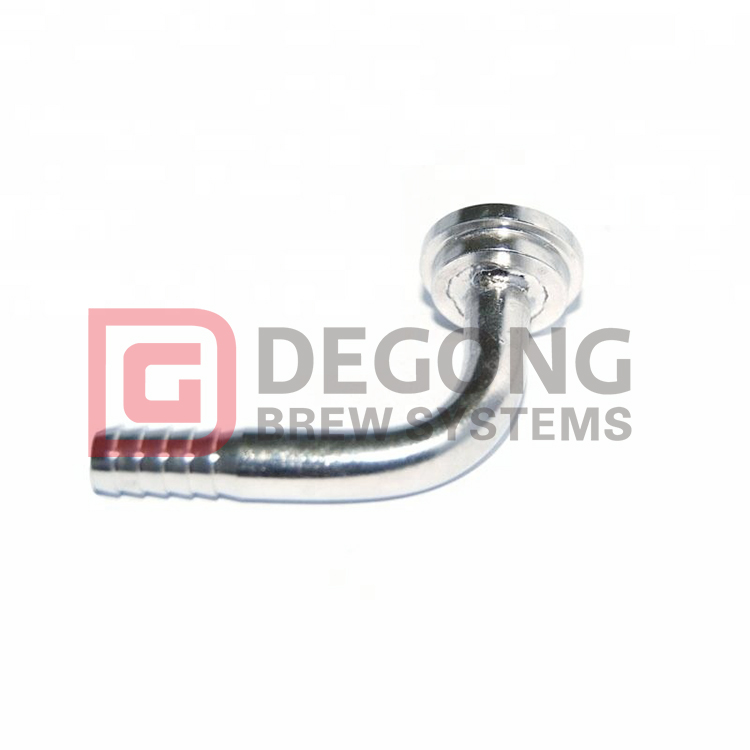

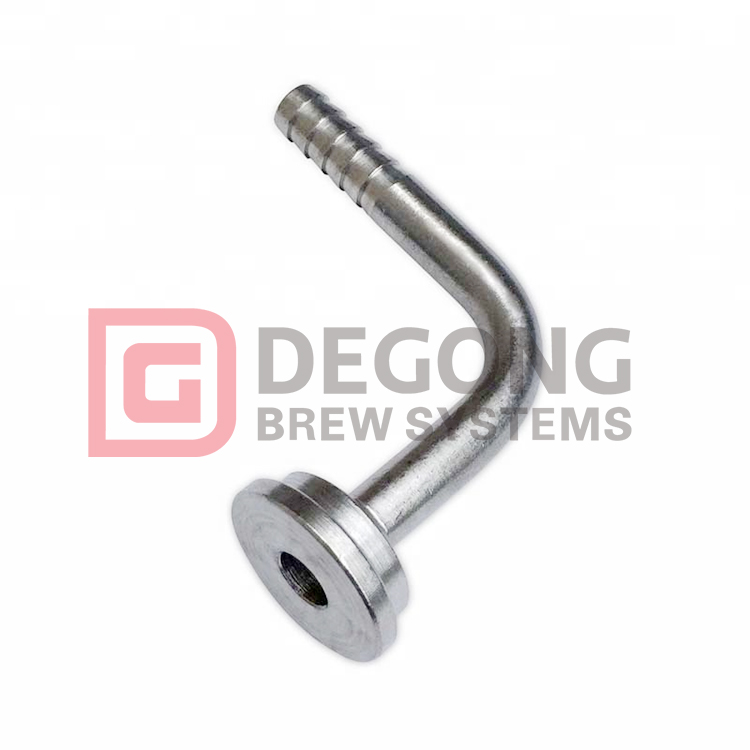

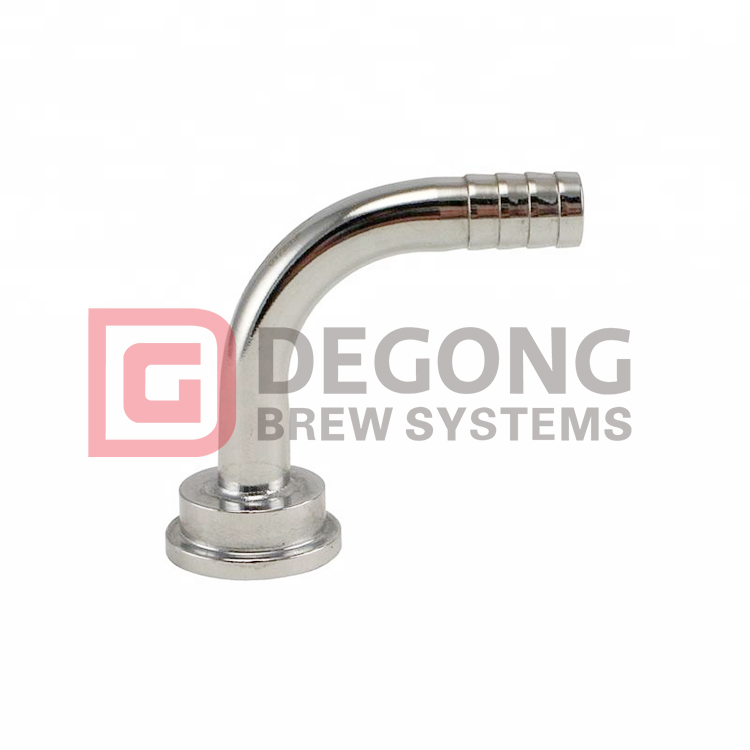

Barb Hose Fitting 90 Degree Swivel Elbow Stainless Steel Casting

Bent 90 degree elbow hose barb in one piece design to eliminate extra connection. Sanitary polishing and finish.
Availability:
Quantity:
  • Elbow Hose Adapters

  • DEGONG

Product Description

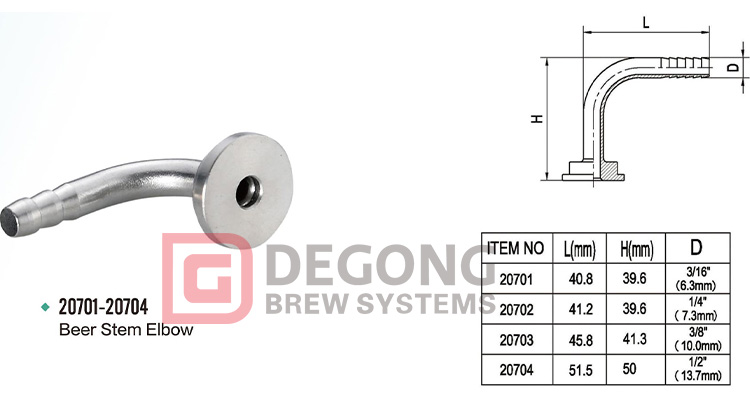

Elbow Hose Adapters


93

20701:SS304, Elbow Tail Piece 3/16" Barb
20702:SS304, Elbow Tail Piece 1/4" Barb
20703:SS304, Elbow Tail Piece 3/8" Barb
20704:SS304, Elbow Tail Piece 1/2" Barb

All accessories allow beer, water, soda and other beverages to flow through the dispensing system, suitable for almost any location or application.

1. All stainless steel accessories are passivated or electropolished to meet the standards in the food and beverage industry.

2. Meet Reach-SVHC requirements, NSF certification

3. Suitable for soft drinks, beer beverages, syrups, dispensers, beverage and food fields, beverage dispensers, nitro coffee machines

4. Different projects and different markets will have different costs, and we will continue to provide each customer with the best and competitive price.

8988919092

Related Products

94

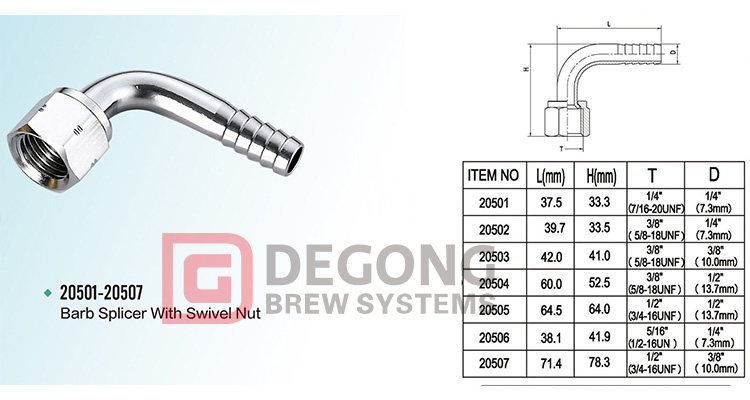

Barb splicer with swivel nut

20501:SS elbow 1/4 swivel nut × 1/4 barb
20502:SS elbow 3/8 FFL swivel × 1/4 barb
20503: SS elbow 3/8 swivel nut × 3/8 barb
20504:Elbow Swivel 3/8 Nut × 1/2 Barb S/S
20505:SS elbow, 1/2 barb × 1/2 FFL Swivel
20506:5/16" SWIVEL NUT TO 1/4" BARB - 90°

20507:3/8 ×1/2 (3/4-16) Swivels-elbows


95

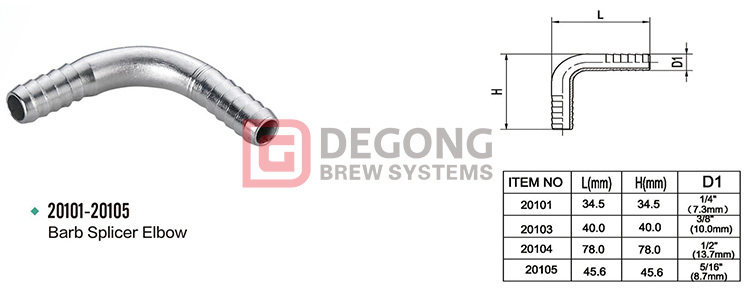

Barb splicer elbow

20101:SS elbow 1/4 barb × 1/4 barb
20102:SS elbow 3/8 barb × 1/4 barb
20103:SS elbow 3/8 barb × 3/8 barb
20104:SS elbow 1/2 barb × 1/2 barb

20105:SS elbow 5/16 barb × 5/16 barb


We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
